| OPTIZEN SP series |
| Agro chemical detector |
|
 |
|

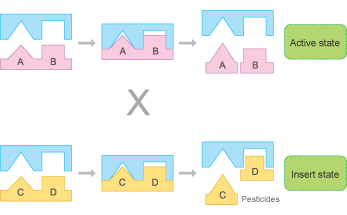

OPTIZEN SP series are designed for rapid pesticides detection in 20 minutes. It provides the fastest and easiest pesticides analysis using enzyme inhibition method.
Anyone can test your food with this very strip
type pesticides analyzer.
|
 |
 |
 |
 |
|
| |
| Easy & simple usage |
| |
 |
|
1. Extraction
Cut the sample in a small piece, put 1ml extract, mix well, and leave it
for 2 minutes. |
|
 |
|
2. Reaction
Drop the 60ul sample extract onto the strip and put it in the thermostat to
maintain temperature. |
|
 |
|
3. Measurement
When reaction ends, conduct measurement by order. |
|
| |
| Specification |
| |
|
OPTIZEN MINI-SP |
OPTIZEN 1412-SP |
| |
Optical System |
Reflectent Monochromator with Optical LED |
| |
Display |
128x64 dot matrix graphic LCD |
| |
Printer |
Small label printer (Optional) |
Internal thermal printer |
| |
Power requirement |
Four 1.2V Ni-MH rechargeable batteries |
AC100 ~ 240V, 50/60H, 1A |
| |
Inhibition Reproducibility |
± 3% |
| |
Interface Ports |
USB communications |
RS-232C serial |
| |
Data download PC S/W |
Provided |
| |
Time setting |
Extraction 5min/Reaction 10min |
| |
Overall Dimensions |
110(W) x 48(H) x 245(D) |
385(W) x 344(D) x 180(H) mm |
|
| |
| Products |
| |
 |
 |
| |
OPTIZEN 1412-SP
Desk top agro chemical detector |
OPTIZEN MINI-SP
Portable agro chemical detector |
|
| |
| Detectable pesticides |
| Classification |
Name |
Organic
Phosphorous
Pesticides |
Acephate, Cadusafos, Chlorfenvinphos, Chlorpyrifos, Chlorpyrifos-methyl, Demeton-S-methyl, Diazinon, Dichlorvos, Pyridaphenthion, Dimethoate, Disulfoton, EPN, Ethion, Ethoprophos, Etrimfos, Fenitrothion, Fensulfothion, Fenthion, Formothion, Isazofos, Isofenphos, Malathion, Mecarbam, Methamidophos, Methidathion, Mevinphos, Monocrotophos, Omethoate, Parathion, Parathion-methyl, Phenthoate, Phorate, Phosalone, Phosmet, Phosphamidon, Phoxim, Pirimiphos-ethyl, Pirimiphos-methyl, Profenofos, Prothiofos, Pyraclofos, Terbufos, Thiometon, Triazophos, Trichlorfon, Vamidothion |
Cabamate
Pesticides |
Carbaryl, Carbofuran, Carbosulfan, Propoxur, Ethiofencarb, Methiocarb, Metolcarb, Pirimicarb |
|
※Please contact our center overseas@mecasys.co.kr
|
|
