| OPTIZEN 2120UV plus |
| Split beam UV/Vis spectrophotometer |
|
 |
|
OPTIZEN 2120UV plus is self-splits into even power of gain of photodiode preamplifier into optimal ranges with 1nm bandwidth. |
 |
 |
 |
 |
|
| |
| Features |
| |
- Very optimal ranges and stability in measuring
- User-friendly software with scanning and time course capabilities
- Auto blank check
- S.T.M. system (Select – Test – Measure)
- Practicable use for kits from different manufactures
- Large LCD to display graphics and calculations
- 8 cells auto rotating system holder : Standard
- Versatile data processin |
|
| |
| OPTIZEN View 4.1 (PC interface software) |
| |
|

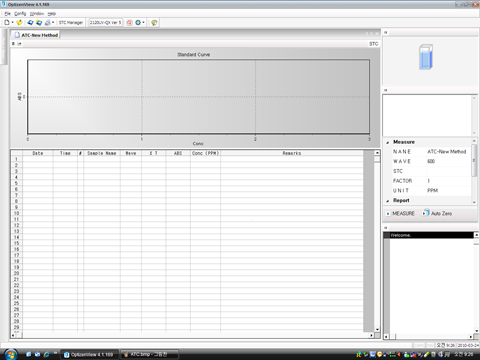

ATC mode
Measuring absorption, transmittance, and concentration. |
 |

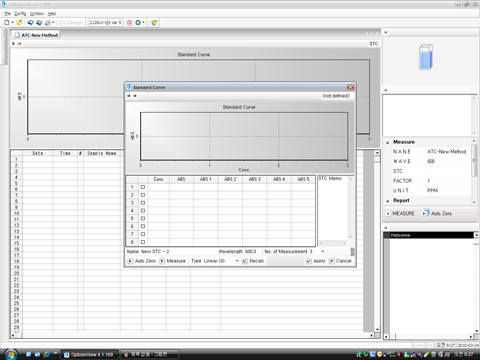

STC mode
Draw standard curve. |
 |

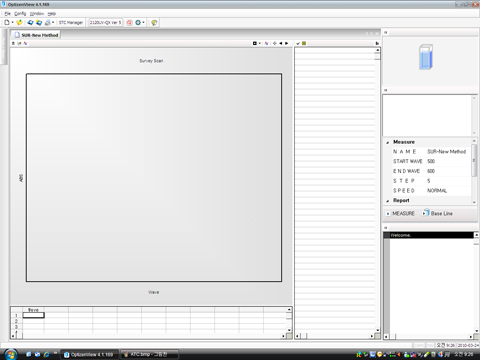

SUR mode
Making graph at the specific wavelength ranges. |
 |

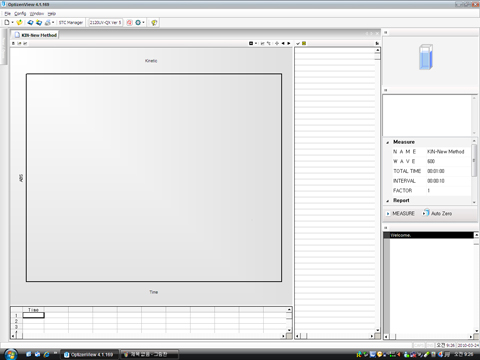

KIN mode
Measurement with variable with time differences |
|
| |
| Specifications |
| |
Wavelength Range |
190.0nm~1100.0nm |
| |
Wavelength Accuracy |
< ±0.5nm |
| |
Stray Light |
0.05%T at 220 & 340nm |
| |
Photometric Range |
-0.1 to 3.0A, o to 125% |
| |
Stability |
± 0.002Abs/hour |
| |
Light Source |
Tungsten-Halogen lamp & Deuterium lamp |
| |
Dimensions |
W515 x D430 x H242 |
|
| |
Accessories  |
| |
Temperature cell holder
Micro volume cell holder
Film cell holder–Wide
Round cell holder
|
|
| |
| Pre-programmed products (2120 series) |
| |
Nanobiometer OPTIZEN 2120UV plus bio |
|
| |
|
|
